Plate Ice Machine

Snowkey Plate ice machine ranges from 5mm to 30mm in thickness and 20mm to 50mm in width and has no fixed shape. Its thickness and width maybe freely adjusted according to use.

High Effeciency and Energy Saving Flake Ice Machines

500 Kg to 60 Tons Per Day Flake Ice Plants

SNOWKEY plate ice boasts even cooling effect, good ventilation and even constant refrigeration temperature. So it is very suitable for refrigerating aquatic products.

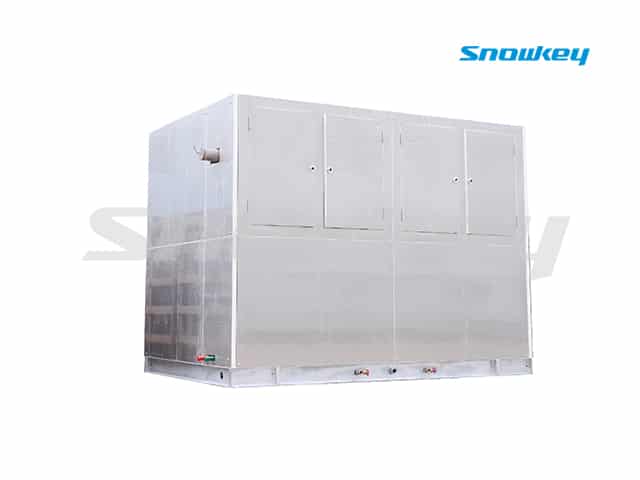

SNOWKEY PLATE ICE MACHINE

PLATE ICE EVAPORATOR

SNOWKEY plate ice machine fully conforms to the certification requirements of HACCP and FDA. It achieves better cold storage effect and spends 30% more time in melting than other types of ice.

Plate Ice Evaporator 1

Special Design, high efficiency and energy saving.

Plate ice evaporator mainly fall into two kinds namely, aluminium alloy plate ice evaporator & stainless steel plate ice evaporator. Plate ice evaporator adopts direct expansion systems and use R-22, R-404a or ammonia (NH3) as the cooling medium. Evaporator manufactured with Special technologies The 735mmx1445mm large-sized evaporator is manufactuered of pur pure stainless with the world’s most sophisticated laser-welding technologies. It boasts such advantages as sanitation, clealiness and no harm to human body e.t.c. It fully confirms to the certification requirements of HACCP and FDA and can be applied to fields in relation to edible ice. IT contains a number of evaporators in parallel connection and can produce 500kg to 600 tons of ice per day.

Plate Ice Machine 3

Special Water Circulation System

The raw material water flows evenly on the surface of the evaporator and gathers into the water tank through the special water through at the bottom of the evaporator. Then the water is pumped to the water distributor in the top of the evaporator and returns to the surface of the evaporator to freeze. The said special water circulation system makes the surface of plate ice produced very smooth. Mode of peeling ice at a high speed & without additional heat Its unnecessary to introduce hot gas from outside since the hot Freon gas produced by the plate ice machine itself is fed into the plate ice evaporator. Then within less than 1 min the plate ice that has already taken shaped fails down & breaks because of the pull of gravity.

Plate Ice Machine Applications

  • Aquatic product processing, cooling, preserving and transportation.
  • Edible Ice Making Factory
  • Port Ice Making Factory.
  • Chemical Projects and dye cooling and temperature reduction.
  • Medical treatment and medicine
  • Cooling, temp reduction preservation.
  • Cold Storage and Central Air Conditioning
  • Cold Water Temperature reduction system
